AGM

For illustration only, actual product may vary

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA PRESENTED ARE SUBJECT TO CHANGE WITHOUT NOTICE

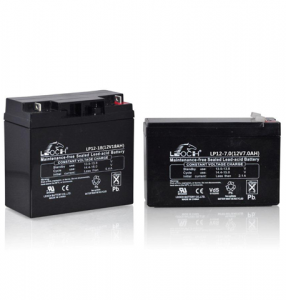

LP SERIES - GENERAL PURPOSE (Small Sizes)
      APPLICATIONS

•  All Purpose

•  Uninterruptible Power Supply (UPS)

•  Electric Power System (EPS)

•  Emergency backup power supply

• Emergency lights

• Railway signals

• Aircraft signals

  Alarm and security systems

• Electronic apparatus and equipment

• Communication power supply

• DC power supply

  Auto control system


ModelNominalRated Capacity(AH)Approx DimensionApproxTerminal
Voltage20HR10HR5HR1HRLengthWidthHeightTotal HeightWeighttype
(V) 1.81.81.751.6mmin.mmin.mmin.mmin.kglbs
 V/cellV/cellV/cellV/cell
LP4-3.543.53.262.942.12903.54341.34592.32652.560.450.99T1
LP4-4.544.54.193.782.7352.52.07481.89943.71003.940.61.32T1
LP4-5.0454.654.23.04913.58501.97742.91742.910.661.46T1
LP4-8.0487.446.85.02913.58501.971013.981013.980.972.14T2
LP4-104109.38.56.28101.54501.97943.71003.941.142.51T2
LP6-1.0610.930.840.607512.01421.65512.01572.240.250.55T1
LP6-1.261.21.121.010.728973.82240.9451.52.0357.52.260.290.64T1
LP6-2.0621.861.681.21431.69371.46762.99762.990.340.75/
LP6-2.862.82.62.351.7662.6331.3973.821034.060.571.26T1
LP6-3.263.22.982.691.941345.28341.34602.36662.60.671.48T1
LP6-4.0643.723.362.43702.76471.851003.941064.170.741.63T1
LP6-4.0H643.723.362.43702.76471.851003.941064.170.731.61T1
LP6-4.564.54.193.782.73702.76471.851003.941064.170.811.79T1
LP6-4.5H64.54.193.782.73702.76471.851003.941064.170.751.65T1
LP6-4.5S64.54.193.782.73672.64672.64963.781094.290.781.72S
LP6-5.0654.654.23.041694.29351.38702.76742.910.952.09T1
LP6-5.465.45.024.533.28702.76471.851003.941064.170.81.76T1
LP6-6.0665.585.053.64702.76471.851003.941064.170.91.98T1
LP6-7.267.26.76.124.521515.94341.34943.71003.941.22.65T2
LP6-7.567.56.986.384.711515.94341.34943.71003.941.262.78T2
LP6-7.867.87.256.634.91515.94341.34943.71003.941.282.82T2
LP6-8.568.57.917.235.341515.94341.34943.71003.941.22.65T2
LP6-8.5H68.57.917.235.34983.86562.21184.651204.721.523.35T2
LP6-106109.38.56.281515.94512.01943.71003.941.623.57T2
LP6-1261211.210.27.541515.94512.01943.71003.941.83.97T2
LP6-1361312.0911.058.161084.25702.761405.511405.512.244.94NTI/PT2
LP6-146141311.98.791515.95512.01943.71003.942.054.52T2
LP6-2062018.61712.61576.18833.271254.921254.923.217.08T3
LP6-3663633.530.622.61616.34873.431636.421696.655.512.1T2/T3
LP6-4264239.135.726.41616.34873.431636.421696.655.812.8T2
LP8-3.283.22.982.691.941345.2836.51.44632.48692.720.751.65T1
LP12-0.8120.80.740.670.49963.78250.98622.44622.440.360.79/
LP12-1.2121.21.121.010.75973.82431.69522.05582.280.571.26T1/T2
LP12-1.9121.91.771.621.151787.01351.38602.36662.60.881.94T1
LP12-2.2122.22.051.851.34702.76481.89983.861044.090.81.76T1
LP12-2.3122.32.141.931.41787.01351.38602.36662.60.972.14T1
LP12-2.3C121.81.671.511.321827.17240.94612.4612.40.781.72/
LP12-2.8122.82.62.351.71325.2331.3983.861044.091.182.6T1
LP12-2.9122.92.72.441.76793.11562.2993.91054.131.12.43T1
LP12-3.2123.22.982.691.941345.28672.6460.52.3866.52.621.352.98T1/T2
LP12-4.0L1243.723.362.431957.68471.85702.76762.991.63.53T1
LP12-4.01243.723.362.43903.54702.761013.981074.211.453.2T1
LP12-4.5124.54.193.782.73903.54702.761013.981074.211.483.76T1
LP12-5.01254.654.23.041515.94532.09933.66993.91.753.86T1
LP12-5.4125.45.024.543.28903.54702.761013.981074.211.653.64T1
LP12-6.0125.85.515.053.64903.54702.761013.981074.211.884.15T1
LP12-6.0H1265.585.053.641405.51481.891024.021034.061.683.7NTI/PT2
LP12-6.5126.56.055.554.081515.94652.5693.53.68993.92.064.54T1
LP12-7.01276.535.954.41515.94652.5693.53.68993.92.184.81T2
LP12-7.2127.26.76.124.491515.94652.5693.53.68993.92.355.18T2
LP12-7.5127.56.986.44.711515.94652.5693.53.68993.92.355.18T2
LP12-7.8127.87.286.54.741515.94652.5693.53.68993.92.55.51T2
LP12-8.5128.57.937.155.311515.94652.5693.53.68993.92.455.4T2
LP12-1012109.38.56.281515.94983.86953.741013.983.257.17T2
LP12-10H12109.38.56.281515.94652.561114.371174.613.27.06T2
LP12-12121211.210.27.491515.94983.86953.741013.983.57.72T2
LP12-1412141311.98.791515.94983.86953.741013.984.058.93T2
LP12-1512151412.89.42181.57.15773.03167.56.59167.56.594.710.4T3
LP12-18121816.715.311.2181.57.15773.03167.56.59167.56.595.411.9T3
LP12-20122018.61712.6181.57.15773.03167.56.59167.56.595.7812.7T3
LP12-24122422.320.415.11666.541756.891254.921254.927.215.9T3
LP12-24H122422.320.415.11646.51254.921756.891756.898.4518.6T12
LP12-26122624.222.116.31666.561756.891254.921254.927.817.2T12
LP12-2812282623.817.61666.541756.891254.921254.928.418.5T3
LP12-28H12282623.817.61646.51254.921756.891756.899.120.1T3
LP12-30123027.925.518.81666.561756.891254.921254.928.619T3
LP12-30H123027.925.518.81957.681305.121646.461787.019.721.4T5
LP12-33123330.728.120.71957.681305.121646.461787.0110.523.2T5
LP12-35123532.629.8221957.681305.121646.461787.0111.224.7T5
LP SERIES - GENERAL PURPOSE (Middle Sizes)
APPLICATIONS

• All Purpose

• Uninterruptible Power Supply (UPS)

• Electric Power System (EPS)

  Emergency backup power supply

• Emergency lights

• Railway signals

• Aircraft signals

  Alarm and security systems

• Electronic apparatus and equipment

• Communication power supply

• DC power supply

  Auto control system


ModelNominalRated Capacity(AH)Approx DimensionApproxTerminal
Voltage20HR10HR5HR1HRLengthWidthHeightTotal HeightWeighttype
(V) 1.81.81.751.6mmin.mmin.mmin.mmin.kglbs
 V/cellV/cellV/cellV/cell
LP6-150615615012991.526010.21807.092479.722539.962146.7T7
LP6-200H6208200172122306121686.612228.742288.982862.2T8
LP12-3812403832.723.21977.761656.51706.691706.6912.226.9T6
LP12-40124038.533.123.525510973.822037.992037.9912.527.6T7
LP12-451246.84538.727.51977.761656.51706.691706.6914.231.3T6
LP12-501252504330.525710.11325.192007.872007.8715.735.3T6
LP12-551257.25547.333.62299.021385.432058.072118.3116.235.7T6
LP12-601262.46051.536.626010.21686.612088.192148.4318.440.8T6
LP12-65126562.553.838.134813.71676.571787.011787.0119.242.3T6
LP12-701272.87060.342.734813.71676.571787.011787.0121.647.6T6
LP12-7512787564.545.826010.21686.612088.192148.4322.349.6T6
LP12-801283.2806948.826010.21686.612088.192148.4323.852.9T6
LP12-901293.69077.554.9330131736.812128.352208.6627.861.7T11
LP12-100121041008863.8330131736.812128.352208.6630.667.9T11
LP12-12012124.8120103.273.240816.11776.972258.862258.863475.6T11
LP12-13512140.413511682.434513.61726.7727410.82801141.290.8T11
LP12-1501215615012991.548519.11706.69238.59.392399.443.295.9T11
LP12-18012187.2180155109.853220.92078.152148.422208.6653.6119.1T11
LP12-2001220820017212252220.62409.452188.582248.8259.8132.7T11
LP12-25012260250215152.552220.626810.62208.662268.972.5161T11

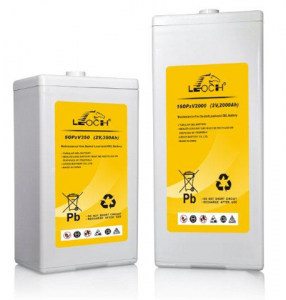

LP 2V SERIES - (Middle to Large Sizes)
APPLICATIONS

•  Telecommunication central station (wired or cellular)

•  Power system communication, military communication, etc.

•  Network communication including: data transmission, television signal transmission, etc.

  Uninterruptable Power System (UPS - for Telecom)


ModelNominalRated Capacity(AH)Approx DimensionApproxTerminal
Voltage20HR10HR5HR1HRLengthWidthHeightTotal HeightWeighttype
(V) 1.81.81.751.6mmin.mmin.mmin.mmin.kglbs
 V/cellV/cellV/cellV/cell
LP2-65268.26556.539.51706.69722.832058.072128.354.610.1T6
LP2-10021051008760.71706.69722.832058.072148.435.812.8T6
LP2-1202126120104.572.81706.69983.862058.072148.437.416.3T7
LP2-1302136.513011378.91706.69983.862058.072128.35817.6T7
LP2-1502157.6150130.591.11706.69983.862058.072148.438.418.5T7
LP2-2002210200174121.41706.691104.3332812.935013.812.728T11
LP2-2502262250217.5151.81706.691104.3332812.935013.813.830.4T11
LP2-3002316300261182.11706.691505.913301335013.817.739T11
LP2-3502368350304.5212.51706.691505.9132812.935013.819.342.6T11
LP2-4002420400348242.82108.271756.893301335013.824.353.6T11
LP2-5002526500435303.52409.451756.8932812.934813.72963.9T11
LP2-6002630600522364.230011.81756.893301335013.835.778.7T11
LP2-7002736700609424.930011.81756.893301335013.838.184T11
LP2-8002840800696485.641016.11756.893301335013.850.4111.1T11
LP2-100021050100087060747518.71756.8932812.935013.860132.3T11
LP2-12002126012001044728.447518.71756.8932812.935013.866.4146.4T11
LP2-15002157615001305910.540315.935413.933913.334913.796211.7T11
LP2-18002189018001566109340315.935413.933913.334913.7101222.7T11
LP2-20002210020001740121449019.335013.833913.334913.7121266.8T11
LP2-25002262625002175151849019.335013.833913.334913.7133294.6T11
LP2-30002315030002610182170927.935013.833713.334713.7180396.9T11
LPF - FRONT TERMINAL SERIES
GENERAL FEATURES - LPF SERIES

• Ideal for 19 inch or 23 inch power cabinets

• Front terminals easy installation, maintenance and monitoring

• Shield design protect terminals from short circuits and provide uniform appearance

• Unique vent valve design, reduce water loss and prevents air/sparks from entering battery

• Thick plates, special formula paste, and plate making process prolong battery service life

  ABS material increases the strength of battery container (Flame-retardant ABS available)

APPLICATIONS

• For standard 19 inch or 23 inch power cabinets

• Network connection equipment for communication systems

• Power system for special networks or Local Area Network (LAN)

• Power station systems

  UPS, standby power supply

ModelNominalRated Capacity(AH)Approx DimensionApproxTerminal
Voltage20HR10HR5HR1HRLengthWidthHeightTotal HeightWeighttype
(V) 1.81.81.751.6mmin.mmin.mmin.mmin.kglbs
 V/cellV/cellV/cellV/cell
LPF12-401241.54037.827.727710.91064.172228.742228.7415.133.3T6
LPF12-5512555348.235.927710.91064.172228.742228.7417.338.1T6
LPF12-70127067.461.545.756422.21144.491877.361877.3625.556.2T6
LPF12-75127573.165.549.556422.21144.491877.361877.362657.3T6
LPF12-901294.4908261.4508201104.33238.59.39238.59.393270.6T13
LPF12-90H1294.4908261.439415.51104.3328511.228511.232.671.9T6
LPF12-100A1210095.28765508201104.33238.59.39238.59.393577.2T13
LPF12-100B1210096.88964.354521.41104.332339.172339.1735.678.5T13
LPF12-100H1210095.28764.439415.51104.3328511.228511.234.576.1T6
LPF12-12512125119.2108.579.955221.71104.3328811.328811.341.591.5T6
LPF12-150A12150142.4130.597.555221.71104.3328811.328811.346101.4T6
LPF12-150B12150142.4130.597.556022.11104.33280112801146101.4T13
LPF12-18012170161.6148110.555022.71264.96280112801154119.1T13
LPF12-20012200188.8173129.256022.11264.9632012.632012.660132.3T11
