DIN High Rate Series (110 to 1550 AH - 5hr rate)
Model	Nominal	Capacity	Size(mm)				Approx Weight		Discharge Rate
	Voltage	(AH)	Size(mm)				(Kg)		5h Final Votage 1.70V		0.5h Final 1.50V
	(V)		L	W	H	T.H	No Acid	With Acid	Current	Capacity	Current	Capacity
			L	W	H	T.H	No Acid	With Acid	(A)	(AH)	(A)	(AH)
2PzS120H	2	120	47	198	339	371	6.1	7.8	24	120	120	60
3PzS180H	2	180	65	198	339	371	8.5	11	36	180	180	90
4PzS240H	2	240	83	198	339	371	10.8	14.2	48	240	240	120
5PzS300H	2	300	101	198	339	371	13.2	17.4	60	300	300	150
6PzS360H	2	360	119	198	339	371	15.6	20.7	72	360	360	180
7PzS420H	2	420	137	198	339	371	17.9	23.9	84	420	420	210
8PzS480H	2	480	155	198	339	371	20.3	27.1	96	480	480	240
9PzS540H	2	540	173	198	339	371	22.7	30.3	108	540	540	270
10PzS600H	2	600	191	198	339	371	25	33.5	120	600	600	300
2PzS160H	2	160	47	198	404	436	7.4	9.7	32	160	160	80
3PzS240H	2	240	65	198	404	436	10.3	13.7	48	240	240	120
4PzS320H	2	320	83	198	404	436	13.3	17.8	64	320	320	160
5PzS400H	2	400	101	198	404	436	16.2	21.8	80	400	400	200
6PzS480H	2	480	119	198	404	436	19.1	25.9	96	480	480	240
7PzS560H	2	560	137	198	404	436	22	30	112	560	560	280
8PzS640H	2	640	155	198	404	436	24.9	34	128	640	640	320
9PzS720H	2	720	173	198	404	436	27.8	38.1	144	720	720	360
10PzS800H	2	800	191	198	404	436	30.8	42.1	160	800	800	400
2PzS210H	2	210	47	198	569	601	10.3	13.3	42	210	210	105
3PzS315H	2	315	65	198	569	601	14.4	18.8	63	315	315	157.5
4PzS420H	2	420	83	198	569	601	18.5	24.4	84	420	420	210
5PzS525H	2	525	101	198	569	601	22.6	30	105	525	525	262.5
6PzS630H	2	630	119	198	569	601	26.7	35.6	126	630	630	315
7PzS735H	2	735	137	198	569	601	30.8	41.2	147	735	735	367.5
8PzS840H	2	840	155	198	569	601	34.9	46.8	168	840	840	420
9PzS945H	2	945	173	198	569	601	39	52.4	189	945	945	472.5
10PzS1050H	2	1050	191	198	569	601	43.1	58	210	1050	1050	525
2PzS230H	2	230	47	198	569	601	10.3	13.5	46	230	230	115
3PzS345H	2	345	65	198	569	601	14.4	19.3	69	345	345	172.5
4PzS460H	2	460	83	198	569	601	18.5	25	92	460	460	230
5PzS575H	2	575	101	198	569	601	22.6	30.8	115	575	575	287.5
6PzS690H	2	690	119	198	569	601	26.7	36.5	138	690	690	345
7PzS805H	2	805	137	198	569	601	30.8	42.3	161	805	805	402.5
8PzS920H	2	920	155	198	569	601	34.9	48	184	920	920	460
9PzS1035H	2	1035	173	198	569	601	39	53.7	207	1035	1035	517.5
10PzS1150H	2	1150	191	198	569	601	43.2	59.5	230	1150	1150	575
2PzS240H	2	240	47	198	569	601	10.8	14.2	48	240	240	120
3PzS360H	2	360	65	198	569	601	15.1	20.2	72	360	360	180
4PzS480H	2	480	83	198	569	601	19.5	26.3	96	480	480	240
5PzS600H	2	600	101	198	569	601	23.8	32.3	120	600	600	300
6PzS720H	2	720	119	198	569	601	28.1	38.4	144	720	720	360
7PzS840H	2	840	137	198	569	601	32.5	44.4	168	840	840	420
8PzS960H	2	960	155	198	569	601	36.8	50.4	192	960	960	480
9PzS1080H	2	1080	173	198	569	601	41.2	56.5	216	1080	1080	540
10PzS1200H	2	1200	191	198	569	601	45.5	62.5	240	1200	1200	600
2PzS250H	2	250	47	198	574	606	10.9	14.4	50	250	250	125
3PzS375H	2	375	65	198	574	606	15.2	20.5	75	375	375	187.5
4PzS500H	2	500	83	198	574	606	19.6	26.7	100	500	500	250
5PzS625H	2	625	101	198	574	606	23.9	32.8	125	625	625	312.5
5PzS625HK	2	625	101	198	574	606	23.9	32.8	125	625	625	312.5
6PzS750H	2	750	119	198	574	606	28.3	39	150	750	750	375
7PzS875H	2	875	137	198	574	606	32.7	45.1	175	875	875	437.5
8PzS1000H	2	1000	155	198	574	606	37	51.2	200	1000	1000	500
9PzS1125H	2	1125	173	198	574	606	41.4	57.4	225	1125	1125	562.5
10PzS1250H	2	1250	191	198	574	606	45.8	63.5	250	1250	1250	625
2PzS310H	2	310	47	198	720	752	13.2	17.6	62	310	310	155
3PzS465H	2	465	65	198	720	752	18.6	25.2	93	465	465	232.5
4PzS620H	2	620	83	198	720	752	23.9	32.7	124	620	620	310
5PzS775H	2	775	101	198	720	752	29.3	40.3	155	775	775	387.5
5PzS775HK	2	775	101	198	720	752	29.3	40.3	155	775	775	387.5
6PzS930H	2	930	119	198	720	752	34.6	47.8	186	930	930	465
7PzS1085H	2	1085	137	198	720	752	40	55.4	217	1085	1085	542.5
8PzS1240H	2	1240	155	198	720	752	45.3	62.9	248	1240	1240	620
8PzS1240HK	2	1240	155	198	720	752	45.9	63.5	248	1240	1240	620
9PzS1395H	2	1395	173	198	720	752	50.7	70.4	279	1395	1395	697.5
10PzS1550H	2	1550	191	198	720	752	56.6	78.6	310	1550	1550	775

DIN-K Series (110 to 1350 AH - 5hr rate)
Model	Nominal	Capacity	Size(mm)				Approx Weight		Discharge Rate
	Voltage	(AH)	Size(mm)				(Kg)		5h Final Votage 1.70V		0.5h Final 1.50V
	(V)		L	W	H	T.H	No Acid	With Acid	Current	Capacity	Current	Capacity
			L	W	H	T.H	No Acid	With Acid	(A)	(AH)	(A)	(AH)
2PzS110K	2	110	47	198	339	371	6.1	7.6	22	110	110	55
3PzS165K	2	165	65	198	339	371	8.4	10.8	33	165	165	82.5
4PzS220K	2	220	83	198	339	371	10.8	13.9	44	220	220	110
5PzS275K	2	275	101	198	339	371	13.1	17	55	275	275	137.5
6PzS330K	2	330	119	198	339	371	15.4	20.1	66	330	330	165
7PzS385K	2	385	137	198	339	371	17.8	23.2	77	385	385	192.5
8PzS440K	2	440	155	198	339	371	20.1	26.4	88	440	440	220
9PzS495K	2	495	173	198	339	371	22.5	29.5	99	495	495	247.5
2PzS140K	2	140	47	198	404	436	7.3	9.3	28	140	140	70
3PzS210K	2	210	65	198	404	436	10.2	13.2	42	210	210	105
4PzS280K	2	280	83	198	404	436	13.1	17.1	56	280	280	140
5PzS350K	2	350	101	198	404	436	15.9	20.9	70	350	350	175
6PzS420K	2	420	119	198	404	436	18.8	24.8	84	420	420	210
7PzS490K	2	490	137	198	404	436	21.7	28.7	98	490	490	245
8PzS560K	2	560	155	198	404	436	24.6	32.5	112	560	560	280
9PzS630K	2	630	173	198	404	436	28	36.9	126	630	630	315
2PzS160K	2	160	47	198	469	501	8.2	10.5	32	160	160	80
3PzS240K	2	240	65	198	469	501	11.4	14.8	48	240	240	120
4PzS320K	2	320	83	198	469	501	14.5	19.1	64	320	320	160
5PzS400K	2	400	101	198	469	501	17.7	23.4	80	400	400	200
6PzS480K	2	480	119	198	469	501	20.9	27.7	96	480	480	240
7PzS560K	2	560	137	198	469	501	24.1	32	112	560	560	280
8PzS640K	2	640	155	198	469	501	27.2	36.3	128	640	640	320
9PzS720K	2	720	173	198	469	501	31.1	41.3	144	720	720	360
2PzS180K	2	180	47	198	469	501	8.6	11.1	36	180	180	90
3PzS270K	2	270	65	198	469	501	12	15.8	54	270	270	135
4PzS360K	2	360	83	198	469	501	15.3	20.5	72	360	360	180
5PzS450K	2	450	101	198	469	501	18.7	25.1	90	450	450	225
6PzS540K	2	540	119	198	469	501	22.1	29.8	108	540	540	270
7PzS630K	2	630	137	198	469	501	25.5	34.4	126	630	630	315
8PzS720K	2	720	155	198	469	501	28.9	39.1	144	720	720	360
9PzS810K	2	810	173	198	469	501	32.8	44.3	162	810	810	405
2PzS200K	2	200	47	198	569	601	10.2	13	40	200	200	100
3PzS300K	2	300	65	198	569	601	14.3	18.5	60	300	300	150
4PzS400K	2	400	83	198	569	601	18.4	24	80	400	400	200
5PzS500K	2	500	101	198	569	601	22.4	29.5	100	500	500	250
6PzS600K	2	600	119	198	569	601	26.5	35	120	600	600	300
7PzS700K	2	700	137	198	569	601	30.6	40.5	140	700	700	350
8PzS800K	2	800	155	198	569	601	34.6	46	160	800	800	400
9PzS900K	2	900	173	198	569	601	39.3	52.1	180	900	900	450
3PzS360K	2	360	65	198	720	752	17.3	22.4	72	360	360	180
4PzS480K	2	480	83	198	720	752	22.1	28.9	96	480	480	240
5PzS600K	2	600	101	198	720	752	26.9	35.4	120	600	600	300
6PzS720K	2	720	119	198	720	752	31.8	42	144	720	720	360
7PzS840K	2	840	137	198	720	752	36.6	48.5	168	840	840	420
8PzS960K	2	960	155	198	720	752	42.4	56	192	960	960	480
9PzS1080K	2	1080	173	198	720	752	47.2	62.6	216	1080	1080	540
2PzS280K	2	280	47	198	720	752	13.2	17.1	56	280	280	140
3PzS420K	2	420	65	198	720	752	18.5	24.4	84	420	420	210
4PzS560K	2	560	83	198	720	752	23.8	31.8	112	560	560	280
5PzS700K	2	700	101	198	720	752	29.1	39.1	140	700	700	350
6PzS840K	2	840	119	198	720	752	34.4	46.4	168	840	840	420
7PzS980K	2	980	137	198	720	752	39.8	53.7	196	980	980	490
8PzS1120K	2	1120	155	198	720	752	45.1	61	224	1120	1120	560
9PzS1260K	2	1260	173	198	720	752	50.4	68.3	252	1260	1260	630
2PzS300K	2	300	47	198	720	752	13.2	17.5	60	300	300	150
3PzS450K	2	450	65	198	720	752	18.5	24.9	90	450	450	225
4PzS600K	2	600	83	198	720	752	23.9	32.4	120	600	600	300
5PzS750K	2	750	101	198	720	752	29.2	39.8	150	750	750	375
6PzS900K	2	900	119	198	720	752	34.5	47.3	180	900	900	450
7PzS1050K	2	1050	137	198	720	752	39.9	41.4	210	1050	1050	525
8PzS1200K	2	1200	155	198	720	752	45.8	62.8	240	1200	1200	600
9PzS1350K	2	1350	173	198	720	752	51.2	70.3	675	1350	1350	675

DIN-C Series (210 to 1400 AH - 5hr rate)
Model	Nominal	Capacity	Size(mm)				Approx Weight		Discharge Rate
	Voltage	(AH)	Size(mm)				(Kg)		5h Final Votage 1.70V		0.5h Final 1.50V
	(V)		L	W	H	T.H	No Acid	With Acid	Current	Capacity	Current	Capacity
			L	W	H	T.H	No Acid	With Acid	(A)	(AH)	(A)	(AH)
2PzS210C	2	210	47	198	513	545	9.6	12.8	42	210	210	105
3PzS315C	2	315	65	198	513	545	13.4	18.2	63	315	315	157.5
4PzS420C	2	420	83	198	513	545	17.2	23.7	84	420	420	210
5PzS525C	2	525	101	198	513	545	21	29.1	105	525	525	262.5
6PzS630C	2	630	119	198	513	545	24.9	34.5	126	630	630	315
7PzS735C	2	735	137	198	513	545	28.7	40	147	735	735	367.5
8PzS840C	2	840	155	198	513	545	33.1	46	168	840	840	420
9PzS945C	2	945	173	198	513	545	36.9	551.4	189	945	945	472.5
10PzS1050C	2	1050	191	198	513	545	40.8	56.9	210	1050	1050	525
2PzS230C	2	230	47	198	543	575	10.2	13.7	46	230	230	115
3PzS345C	2	345	65	198	543	575	14.3	19.6	69	345	345	172.5
4PzS460C	2	460	83	198	543	575	18.2	25.4	92	460	460	230
5PzS575C	2	575	101	198	543	575	22.5	31.3	115	575	575	287.5
6PzS690C	2	690	119	198	543	575	26.6	37.2	138	690	690	345
7PzS805C	2	805	137	198	543	575	30.7	43.1	161	805	805	402.5
8PzS920C	2	920	155	198	543	575	35.4	49.5	184	920	920	460
9PzS1035C	2	1035	173	198	543	575	39.5	55.4	207	1035	1035	517.5
10PzS1150C	2	1150	191	198	543	575	43.6	61.2	230	1150	1150	575
2PzS280C	2	280	47	198	688	720	12.8	17.1	56	280	280	140
3PzS420C	2	420	65	198	688	720	18	24.4	84	420	420	210
4PzS560C	2	560	83	198	688	720	23.2	31.8	112	560	560	280
5PzS700C	2	700	101	198	688	720	28.4	39.1	140	700	700	350
6PzS840C	2	840	119	198	688	720	33.6	46.5	168	840	840	420
7PzS980C	2	980	137	198	688	720	38.8	53.8	196	980	980	490
8PzS1120C	2	1120	155	198	688	720	44.6	61.8	224	1120	1120	560
9PzS1260C	2	1260	173	198	688	720	49.8	69.2	252	1260	1260	630
10PzS1400C	2	1400	191	198	688	720	55	76.5	280	1400	1400	700

DIN Series (110 to 1500 AH - 5hr rate)
Model	Nominal	Capacity	Size(mm)				Approx Weight		Discharge Rate
	Voltage	(AH)	Size(mm)				(Kg)		5h Final Votage 1.70V		0.5h Final 1.50V
	(V)		L	W	H	T.H	No Acid	With Acid	Current	Capacity	Current	Capacity
			L	W	H	T.H	No Acid	With Acid	(A)	(AH)	(A)	(AH)
2PzS110	2	110	47	198	339	371	6.1	7.6	22	110	110	55
3PzS165	2	165	65	198	339	371	8.4	10.8	33	165	165	82.5
4PzS220	2	220	83	198	339	371	10.8	13.9	44	220	220	110
5PzS275	2	275	101	198	339	371	13.1	17	55	275	275	137.5
6PzS330	2	330	119	198	339	371	15.4	20.1	66	330	330	165
7PzS385	2	385	137	198	339	371	17.8	23.2	77	385	385	192.5
8PzS440	2	440	155	198	339	371	20.1	26.4	88	440	440	220
9PzS495	2	495	173	198	339	371	22.5	29.5	99	495	495	247.5
10PzS550	2	550	191	198	339	371	25.3	33.1	110	550	550	275
2PzS140	2	140	47	198	404	436	7.3	9.3	28	140	140	70
3PzS210	2	210	65	198	404	436	10.2	13.2	42	210	210	105
4PzS280	2	280	83	198	404	436	13.1	17.1	56	280	280	140
5PzS350	2	350	101	198	404	436	15.9	20.9	70	350	350	175
6PzS420	2	420	119	198	404	436	18.8	24.8	84	420	420	210
7PzS490	2	490	137	198	404	436	21.7	28.7	98	490	490	245
8PzS560	2	560	155	198	404	436	24.6	32.5	112	560	560	280
9PzS630	2	630	173	198	404	436	28	36.9	126	630	630	315
10PzS700	2	700	191	198	404	436	30.8	40.8	140	700	700	350
2PzS160	2	160	47	198	469	501	8.2	10.5	32	160	160	80
3PzS240	2	240	65	198	469	501	11.4	14.8	48	240	240	120
4PzS320	2	320	83	198	469	501	14.5	19.1	64	320	320	160
5PzS400	2	400	101	198	469	501	17.7	23.4	80	400	400	200
6PzS480	2	480	119	198	469	501	20.9	27.7	96	480	480	240
7PzS560	2	560	137	198	469	501	24.1	32	112	560	560	280
8PzS640	2	640	155	198	469	501	27.2	36.3	128	640	640	320
9PzS720	2	720	173	198	469	501	31.1	41.3	144	720	720	360
10PzS800	2	800	191	198	469	501	34.3	45.6	160	800	800	400
2PzS180	2	180	47	198	469	501	8.6	11.1	36	180	180	90
3PzS270	2	270	65	198	469	501	12	15.8	54	270	270	135
4PzS360	2	360	83	198	469	501	15.3	20.5	72	360	360	180
5PzS450	2	450	101	198	469	501	18.7	25.1	90	450	450	225
6PzS540	2	540	119	198	469	501	22.1	29.8	108	540	540	270
7PzS630	2	630	137	198	469	501	25.5	34.4	126	630	630	315
8PzS720	2	720	155	198	469	501	28.9	39.1	144	720	720	360
9PzS810	2	810	173	198	469	501	32.8	44.3	162	810	810	405
10PzS900	2	900	191	198	469	501	36.2	49	180	900	900	450
2PzS200	2	200	47	198	569	601	10.2	13	40	200	200	100
3PzS300	2	300	65	198	569	601	14.3	18.5	60	300	300	150
4PzS400	2	400	83	198	569	601	18.4	24	80	400	400	200
5PzS500	2	500	101	198	569	601	22.4	29.5	100	500	500	250
6PzS600	2	600	119	198	569	601	26.5	35	120	600	600	300
7PzS700	2	700	137	198	569	601	30.6	40.5	140	700	700	350
8PzS800	2	800	155	198	569	601	34.6	46	160	800	800	400
9PzS900	2	900	173	198	569	601	39.3	52.1	180	900	900	450
10PzS1000	2	1000	191	198	569	601	43.3	57.5	200	1000	1000	500
3PzS360	2	360	65	198	720	752	17.3	22.4	72	360	360	180
4PzS480	2	480	83	198	720	752	22.1	28.9	96	480	480	240
5PzS600	2	600	101	198	720	752	26.9	35.4	120	600	600	300
6PzS720	2	720	119	198	720	752	31.8	42	144	720	720	360
7PzS840	2	840	137	198	720	752	36.6	48.5	168	840	840	420
8PzS960	2	960	155	198	720	752	42.4	56	192	960	960	480
9PzS1080	2	1080	173	198	720	752	47.2	62.6	216	1080	1080	540
10PzS1200	2	1200	191	198	720	752	52.1	69.1	240	1200	1200	600
2PzS280	2	280	47	198	720	752	13.2	17.1	56	280	280	140
3PzS420	2	420	65	198	720	752	18.5	24.4	84	420	420	210
4PzS560	2	560	83	198	720	752	23.8	31.8	112	560	560	280
5PzS700	2	700	101	198	720	752	29.1	39.1	140	700	700	350
6PzS840	2	840	119	198	720	752	34.4	46.4	168	840	840	420
7PzS980	2	980	137	198	720	752	39.8	53.7	196	980	980	490
8PzS1120	2	1120	155	198	720	752	45.1	61	224	1120	1120	560
9PzS1260	2	1260	173	198	720	752	50.4	68.3	252	1260	1260	630
10PzS1400	2	1400	191	198	720	752	55.7	75.6	280	1400	1400	700
2PzS300	2	300	47	198	720	752	13.2	17.5	60	300	300	150
3PzS450	2	450	65	198	720	752	18.5	24.9	90	450	450	225
4PzS600	2	600	83	198	720	752	23.9	32.4	120	600	600	300
5PzS750	2	750	101	198	720	752	29.2	39.8	150	750	750	375
6PzS900	2	900	119	198	720	752	34.5	47.3	180	900	900	450
7PzS1050	2	1050	137	198	720	752	39.9	54.8	210	1050	1050	525
8PzS1200	2	1200	155	198	720	752	45.8	62.8	240	1200	1200	600
9PzS1350	2	1350	173	198	720	752	51.2	70.3	270	1350	1350	675
10PzS1500	2	1500	191	198	720	752	56.5	77.8	300	1500	1500	750

BS High Rate Series (112 to 1110 AH - 5hr rate)
Model	Nominal	Capacity	Size(mm)				Approx Weight		Discharge Rate
	Voltage	(AH)	Size(mm)				(Kg)		5h Final Votage 1.70V		0.5h Final 1.50V
	(V)		L	W	H	T.H	No Acid	With Acid	Current	Capacity	Current	Capacity
			L	W	H	T.H	No Acid	With Acid	(A)	(AH)	(A)	(AH)
2PzB112H	2	112	45	158	402	434	6.2	7.8	22.4	112	112	56
3PzB168H	2	168	61	158	402	434	8.4	10.8	33.6	168	168	84
4PzB224H	2	224	77	158	402	434	10.6	13.8	44.8	224	224	112
5PzB280M	2	280	89	158	402	434	12.9	16.8	56	280	280	140
5PzB280H	2	280	93	158	402	434	12.9	16.8	56	280	280	140
6PzB336H	2	336	109	158	402	434	15.1	19.9	67.2	336	336	168
7PzB392H	2	392	125	158	402	434	17.3	22.9	78.4	392	392	196
8PzB448H	2	448	141	158	402	434	19.5	25.9	89.6	448	448	224
9PzB504H	2	504	157	158	402	434	21.8	28.9	100.8	504	504	252
10PzB560H	2	560	173	158	402	434	24.6	32.5	112	560	560	280
2PzB120H	2	120	45	158	402	434	6.2	7.9	24	120	120	60
3PzB180H	2	180	61	158	402	434	8.5	11	36	180	180	90
4PzB240H	2	240	77	158	402	434	10.7	14.1	48	240	240	120
5PzB300H	2	300	93	158	402	434	13	17.2	60	300	300	150
6PzB360H	2	360	109	158	402	434	15.2	20.3	72	360	360	180
7PzB420H	2	420	125	158	402	434	17.5	23.4	84	420	420	210
8PzB480H	2	480	141	158	402	434	19.7	26.5	96	480	480	240
9PzB540H	2	540	157	158	402	434	21.9	29.6	108	540	540	270
10PzB600H	2	600	173	158	402	434	24.8	33.3	120	600	600	300
2PzB140H	2	140	45	158	457	489	7.2	9.1	28	140	140	70
3PzB210H	2	210	61	158	457	489	9.8	12.7	42	210	210	105
4PzB280H	2	280	77	158	457	489	12.4	16.4	56	280	280	140
5PzB350H	2	350	93	158	457	489	15	20	70	350	350	175
6PzB420H	2	420	109	158	457	489	17.6	23.6	84	420	420	210
7PzB490H	2	490	125	158	457	489	20.2	27.2	98	490	490	245
8PzB560H	2	560	141	158	457	489	22.8	30.8	112	560	560	280
9PzB630H	2	630	157	158	457	489	26	34.9	126	630	630	315
10PzB700H	2	700	173	158	457	489	28.6	38.5	140	700	700	350
2PzB150H	2	150	45	158	500	532	7.6	9.2	30	150	150	75
3PzB225H	2	225	61	158	500	532	10.3	13.5	45	225	225	112.5
4PzB300H	2	300	77	158	500	532	13.1	17.3	60	300	300	150
5PzB375H	2	375	93	158	500	532	15.8	21.2	75	375	375	187.5
5PzB375M	2	375	89	158	500	532	15.8	21.2	75	375	375	187.5
6PzB450H	2	450	109	158	500	532	18.6	25	90	450	450	225
7PzB525H	2	525	125	158	500	532	21.4	28.8	105	525	525	262.5
8PzB600H	2	600	141	158	500	532	24.1	32.6	120	600	600	300
9PzB675H	2	675	157	158	500	532	27.5	37	135	675	675	337.5
10PzB750H	2	750	173	158	500	532	30.2	40.9	150	750	750	375
2PzB152H	2	152	45	158	514	546	7.7	9.8	30.4	152	152	76
3PzB228H	2	228	61	158	514	546	10.4	13.7	45.6	228	228	114
4PzB304H	2	304	77	158	514	546	13.2	17.5	60.8	304	304	152
5PzB380H	2	380	93	158	514	546	16	21.4	76	380	380	190
6PzB456H	2	456	109	158	514	546	18.7	25.2	91.2	456	456	228
7PzB532H	2	532	125	158	514	546	21.5	29	106.4	532	532	266
8PzB608H	2	608	141	158	514	546	24.2	32.9	121.6	608	608	304
9PzB684H	2	684	157	158	514	546	27.7	37.4	136.8	684	684	342
10PzB760H	2	760	173	158	514	546	30.5	41.2	152	760	760	380
2PzB180H	2	180	45	158	554	586	8.5	11.1	36	180	180	90
3PzB270H	2	270	61	158	554	586	11.7	15.5	54	270	270	135
4PzB360H	2	360	77	158	554	586	14.8	19.9	72	360	360	180
5PzB450H	2	450	93	158	554	586	18	24.4	90	450	450	225
6PzB540H	2	540	109	158	554	586	21.2	28.8	108	540	540	270
7PzB630H	2	630	125	158	554	586	24.3	33.3	126	630	630	315
8PzB720H	2	720	141	158	554	586	27.5	37.7	144	720	720	360
9PzB810H	2	810	157	158	554	586	31.2	42.7	162	810	810	405
10PzB900H	2	900	173	158	554	586	34.4	47.1	180	900	900	450
2PzB200H	2	200	45	158	620	652	9.6	12.5	40	200	200	100
3PzB300H	2	300	61	158	620	652	13.2	17.5	60	300	300	150
4PzB400H	2	400	77	158	620	652	16.8	22.5	80	400	400	200
5PzB500H	2	500	93	158	620	652	20.4	27.5	100	500	500	250
6PzB600H	2	600	109	158	620	652	24	32.5	120	600	600	300
7PzB700H	2	700	125	158	620	652	27.6	37.6	140	700	700	350
8PzB800H	2	800	141	158	620	652	31.2	42.6	160	800	800	400
9PzB900H	2	900	157	158	620	652	35.4	48.2	180	900	900	450
10PzB1000H	2	1000	173	158	620	652	39	53.2	200	1000	1000	500
2PzB210H	2	210	45	158	690	722	10.6	13.6	42	210	210	105
3PzB315H	2	315	61	158	690	722	14.6	19	63	315	315	157.5
4PzB420H	2	420	77	158	690	722	18.5	24.5	84	420	420	210
5PzB525H	2	525	93	158	690	722	22.5	29.9	105	525	525	262.5
6PzB630H	2	630	109	158	690	722	26.4	35.3	126	630	630	315
7PzB735H	2	735	125	158	690	722	30.4	40.8	147	735	735	367.5
8PzB840H	2	840	141	158	690	722	34.3	46.2	168	840	840	420
9PzB945H	2	945	157	158	690	722	38.9	52.3	189	945	945	472.5
10PzB1050H	2	1050	173	158	690	722	42.9	57.8	210	1050	1050	525
2PzB220H	2	220	45	158	690	722	10.7	13.8	44	220	220	110
3PzB330H	2	330	61	158	690	722	14.6	19.3	66	330	330	165
4PzB440H	2	440	77	158	690	722	18.6	24.8	88	440	440	220
5PzB550H	2	550	93	158	690	722	22.5	30.3	110	550	550	275
6PzB660H	2	660	109	158	690	722	26.5	35.9	132	660	660	330
7PzB770H	2	770	125	158	690	722	30.5	41.4	154	770	770	385
8PzB880H	2	880	141	158	690	722	35.1	47.6	176	880	880	440
9PzB990H	2	990	157	158	690	722	39.1	53.1	198	990	990	495
10PzB1100H	2	1100	173	158	690	722	43	58.6	220	1100	1100	550

BS-K Series (100 to 1000 AH - 5hr rate)
Model	Nominal	Capacity	Size(mm)				Approx Weight		Discharge Rate
	Voltage	(AH)	Size(mm)				(Kg)		5h Final Votage 1.70V		0.5h Final 1.50V
	(V)		L	W	H	T.H	No Acid	With Acid	Current	Capacity	Current	Capacity
			L	W	H	T.H	No Acid	With Acid	(A)	(AH)	(A)	(AH)
2PzB100K	2	100	45	158	385	417	6	7.4	20	100	100	50
3PzB150K	2	150	61	158	385	417	8.1	10.3	30	150	150	75
4PzB200K	2	200	77	158	385	417	10.3	13.1	40	200	200	100
5PzB250K	2	250	93	158	385	417	12.4	16	50	250	250	125
6PzB300K	2	300	109	158	385	417	14.6	18.9	60	300	300	150
7PzB350K	2	350	125	158	385	417	16.8	21.7	70	350	350	175
8PzB400K	2	400	141	158	385	417	18.9	24.6	80	400	400	200
9PzB450K	2	450	157	158	385	417	21.1	27.5	90	450	450	225
10PzB500K	2	500	173	158	385	417	23.8	30.9	100	500	500	250
2PzB110K	2	110	45	158	402	434	6.2	7.8	22	110	110	55
3PzB165K	2	165	61	158	402	434	8.4	10.8	33	165	165	82.5
4PzB220K	2	220	77	158	402	434	10.6	13.8	44	220	220	110
5PzB275K	2	275	93	158	402	434	12.9	16.8	55	275	275	137.5
6PzB330K	2	330	109	158	402	434	15.1	19.8	66	330	330	165
7PzB385K	2	385	125	158	402	434	17.3	22.8	77	385	385	192.5
8PzB440K	2	440	141	158	402	434	19.5	25.8	88	440	440	220
9PzB495K	2	495	157	158	402	434	21.8	28.8	99	495	495	247.5
10PzB550K	2	550	173	158	402	434	24.6	32.4	110	550	550	275
2PzB130K	2	130	45	158	457	489	7.1	8.9	26	130	130	65
3PzB195K	2	195	61	158	457	489	9.7	12.4	39	195	195	97.5
4PzB260K	2	260	77	158	457	489	12.3	16	52	260	260	130
5PzB325K	2	325	93	158	457	489	14.8	19.5	65	325	325	162.5
6PzB390K	2	390	109	158	457	489	17.4	23	78	390	390	195
7PzB455K	2	455	125	158	457	489	20	26.5	91	455	455	227.5
8PzB520K	2	520	141	158	457	489	22.6	30	104	520	520	260
9PzB585K	2	585	157	158	457	489	25.7	34	117	585	585	292.5
10PzB650K	2	650	173	158	457	489	28.3	37.5	130	650	650	325
2PzB140K	2	140	45	158	500	532	7.5	9.5	28	140	140	70
3PzB210K	2	210	61	158	500	532	10.2	13.2	42	210	210	105
4PzB280K	2	280	77	158	500	532	13	16.9	56	280	280	140
5PzB350K	2	350	93	158	500	532	15.7	20.6	70	350	350	175
6PzB420K	2	420	109	158	500	532	18.4	24.4	84	420	420	210
7PzB490K	2	490	125	158	500	532	21.1	28.1	98	490	490	245
8PzB560K	2	560	141	158	500	532	23.9	31.8	112	560	560	280
9PzB630K	2	630	157	158	500	532	27.2	36.1	126	630	630	315
10PzB700K	2	700	173	158	500	532	29.9	39.8	140	700	700	350
2PzB160K	2	160	45	158	554	586	8.5	10.7	32	160	160	80
3PzB240K	2	240	61	158	554	586	11.6	15	48	240	240	120
4PzB320K	2	320	77	158	554	586	14.7	19.2	64	320	320	160
5PzB400K	2	400	93	158	554	586	17.8	23.5	80	400	400	200
6PzB480K	2	480	109	158	554	586	21	27.8	96	480	480	240
7PzB560K	2	560	125	158	554	586	24.1	32	112	560	560	280
8PzB640K	2	640	141	158	554	586	27.2	36.3	128	640	640	320
9PzB720K	2	720	157	158	554	586	30.9	41.1	144	720	720	360
10PzB800K	2	800	173	158	554	586	34	45.4	160	800	800	400
2PzB180K	2	180	45	158	620	652	9.5	12.1	36	180	180	90
3PzB270K	2	270	61	158	620	652	13.1	16.9	54	270	270	135
4PzB360K	2	360	77	158	620	652	16.6	21.7	72	360	360	180
5PzB450K	2	450	93	158	620	652	20.2	26.6	90	450	450	225
6PzB540K	2	540	109	158	620	652	23.7	31.4	108	540	540	270
7PzB630K	2	630	125	158	620	652	27.3	36.2	126	630	630	315
8PzB720K	2	720	141	158	620	652	30.8	41.1	144	720	720	360
9PzB810K	2	810	157	158	620	652	35	46.5	162	810	810	405
10PzB900K	2	900	173	158	620	652	38.5	51.3	180	900	900	450
2PzB200K	2	200	45	158	690	722	10.6	13.4	40	200	200	100
3PzB300K	2	300	61	158	690	722	14.5	18.7	60	300	300	150
4PzB400K	2	400	77	158	690	722	18.4	24.1	80	400	400	200
5PzB500K	2	500	93	158	690	722	22.3	29.4	100	500	500	250
6PzB600K	2	600	109	158	690	722	26.2	34.7	120	600	600	300
7PzB700K	2	700	125	158	690	722	30.1	40.1	140	700	700	350
8PzB800K	2	800	141	158	690	722	34	45.4	160	800	800	400
9PzB900K	2	900	157	158	690	722	38.6	51.4	180	900	900	450
10PzB1000K	2	1000	173	158	690	722	42.5	56.7	200	1000	1000	500

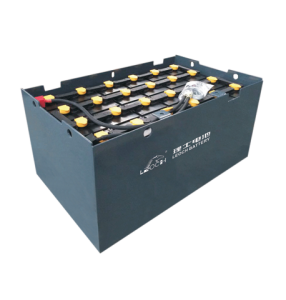

GENERAL FEATURES - TRACTION BS/DIN SERIES
• Flooded Tubular Technology • Fully compliant to BS and DIN standards (DIN/EN 60254-2 and IEC 60254-2) • Nonwoven protective gauntlet, better elasticity, smaller pore size, less electrical resistance, and higher air permeability • Welded and bolt connectors available. • Flexible, fully isolated bolt connectors prevent any creeping current • Flip top plugs with electrolyte level indication • Automatic refilling plugs are also available • Imported high quality microporous catercorner seperator provides higher porosity and lower electrical resistance • Impact resistant containers and lids made of polypropylene(PP) • Patented terminal sealing construction prevents plate growth and electrolyte leakage
APPLICATIONS

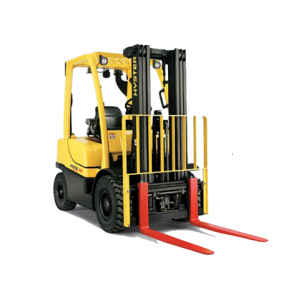

• Provides DC drive power for forklifts (counterbalance, reach trucks, powered pallet trucks, sideloaders) • Used in electric powered platforms (boom lifts, scissors lifts) • Applicable for transportation vehicles and tramcars
BS Series (100 to 1000 AH - 5hr rate)
Model	Nominal	Capacity	Size(mm)				Approx Weight		Discharge Rate
	Voltage	(AH)	Size(mm)				(Kg)		5h Final Votage 1.70V		0.5h Final 1.50V
	(V)		L	W	H	T.H	No Acid	With Acid	Current	Capacity	Current	Capacity
			L	W	H	T.H	No Acid	With Acid	(A)	(AH)	(A)	(AH)
2PzB100	2	100	45	158	385	417	6	7.4	20	100	100	50
3PzB150	2	150	61	158	385	417	8.1	10.3	30	150	150	75
4PzB200	2	200	77	158	385	417	10.3	13.1	40	200	200	100
5PzB250	2	250	93	158	385	417	12.4	16	50	250	250	125
6PzB300	2	300	109	158	385	417	14.6	18.9	60	300	300	150
7PzB350	2	350	125	158	385	417	16.8	21.7	70	350	350	175
8PzB400	2	400	141	158	385	417	18.9	24.6	80	400	400	200
9PzB450	2	450	157	158	385	417	21.1	27.5	90	450	450	225
10PzB500	2	500	173	158	385	417	23.8	30.9	100	500	500	250
2PzB110	2	110	45	158	402	434	6.2	7.8	22	110	110	55
3PzB165	2	165	61	158	402	434	8.4	10.8	33	165	165	82.5
4PzB220	2	220	77	158	402	434	10.6	13.8	44	220	220	110
5PzB275	2	275	93	158	402	434	12.9	16.8	55	275	275	137.5
6PzB330	2	330	109	158	402	434	15.1	19.8	66	330	330	165
7PzB385	2	385	125	158	402	434	17.3	22.8	77	385	385	192.5
8PzB440	2	440	141	158	402	434	19.5	25.8	88	440	440	220
9PzB495	2	495	157	158	402	434	21.8	28.8	99	495	495	247.5
10PzB550	2	550	173	158	402	434	24.6	32.4	110	550	550	275
2PzB130	2	130	45	158	457	489	7.1	8.9	26	130	130	65
3PzB195	2	195	61	158	457	489	9.7	12.4	39	195	195	97.5
4PzB260	2	260	77	158	457	489	12.3	16	52	260	260	130
5PzB325	2	325	93	158	457	489	14.8	19.5	65	325	325	162.5
5PzB325M	2	325	89	158	457	489	14.8	19.5	65	325	325	162.5
6PzB390	2	390	109	158	457	489	17.4	23	78	390	390	195
7PzB455	2	455	125	158	457	489	20	26.5	91	455	455	227.5
8PzB520	2	520	141	158	457	489	22.6	30	104	520	520	260
9PzB585	2	585	157	158	457	489	25.7	34	117	585	585	292.5
10PzB650	2	650	173	158	457	489	28.3	37.5	130	650	650	325
2PzB140	2	140	45	158	500	532	7.5	9.5	28	140	140	70
3PzB210	2	210	61	158	500	532	10.2	13.2	42	210	210	105
4PzB280	2	280	77	158	500	532	13	16.9	56	280	280	140
5PzB350	2	350	93	158	500	532	15.7	20.6	70	350	350	175
5PzB350M	2	350	89	158	500	532	15.7	20.6	70	350	350	175
6PzB420	2	420	109	158	500	532	18.4	24.4	84	420	420	210
7PzB490	2	490	125	158	500	532	21.1	28.1	98	490	490	245
8PzB560	2	560	141	158	500	532	23.9	31.8	112	560	560	280
9PzB630	2	630	157	158	500	532	27.2	36.1	126	630	630	315
10PzB700	2	700	173	158	500	532	29.9	39.8	140	700	700	350
13PzB910	2	910	221	158	500	532	38.1	51	182	910	910	455
2PzB160	2	160	45	158	554	586	8.5	10.7	32	160	160	80
3PzB240	2	240	61	158	554	586	11.6	15	48	240	240	120
4PzB320	2	320	77	158	554	586	14.7	19.2	64	320	320	160
5PzB400	2	400	93	158	554	586	17.8	23.5	80	400	400	200
6PzB480	2	480	109	158	554	586	21	27.8	96	480	480	240
7PzB560	2	560	125	158	554	586	24.1	32	112	560	560	280
8PzB640	2	640	141	158	554	586	27.2	36.3	128	640	640	320
9PzB720	2	720	157	158	554	586	30.9	41.1	144	720	720	360
10PzB800	2	800	173	158	554	586	34	45.4	160	800	800	400
2PzB180	2	180	45	158	620	652	9.5	12.1	36	180	180	90
3PzB270	2	270	61	158	620	652	13.1	16.9	54	270	270	135
4PzB360	2	360	77	158	620	652	16.6	21.7	72	360	360	180
5PzB450	2	450	93	158	620	652	20.2	26.6	90	450	450	225
6PzB540	2	540	109	158	620	652	23.7	31.4	108	540	540	270
7PzB630	2	630	125	158	620	652	27.3	36.2	126	630	630	315
8PzB720	2	720	141	158	620	652	30.8	41.1	144	720	720	360
9PzB810	2	810	157	158	620	652	35	46.5	162	810	810	405
10PzB900	2	900	173	158	620	652	38.5	51.3	180	900	900	450
2PzB200	2	200	45	158	690	722	10.6	13.4	40	200	200	100
3PzB300	2	300	61	158	690	722	14.5	18.7	60	300	300	150
4PzB400	2	400	77	158	690	722	18.4	24.1	80	400	400	200
5PzB500	2	500	93	158	690	722	22.3	29.4	100	500	500	250
6PzB600	2	600	109	158	690	722	26.2	34.7	120	600	600	300
7PzB700	2	700	125	158	690	722	30.1	40.1	140	700	700	350
8PzB800	2	800	141	158	690	722	34	45.4	160	800	800	400
9PzB900	2	900	157	158	690	722	38.6	51.4	180	900	900	450
10PzB1000	2	1000	173	158	690	722	42.5	56.7	200	1000	1000	500
