For illustration only, actual product may vary
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA PRESENTED ARE SUBJECT TO CHANGE WITHOUT NOTICE
| GENERAL FEATURES – DT SERIES | |||||||||||
| • Higher capacity and energy density • High purity primary lead material • Longer service life • Excellent deep cycle property • Formulated paste recipe for deep cycle application • Refilling plugs designed to lower water consumption • Nano grade SiO2-PVC seperator • Advance TTP welding and heat sealing technology • Terminals with high conductivity built to withstand high current discharging • Impact resistant polypropylene(PP) containers and lids • Wide operating temperature, safe and reliable |

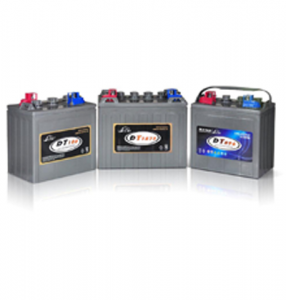

| DT SERIES | |||||||||||
| APPLICATIONS | |||||||||||

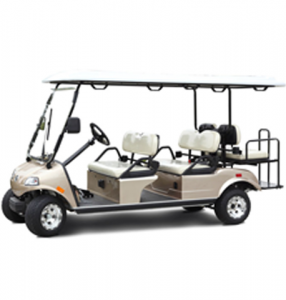

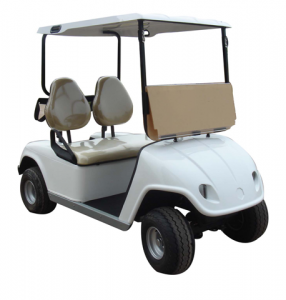

| • Electric vehicles (EV) including – Golf cart, RV, Mini-truck, Floor machine, Electric car, Driverless transporter, etc. • Batteries can be used as a power source for mining, warehouses, dockyards, stations, airport, etc. | |||||||||||
| Model | Voltage | Performance Avarages | Terminal | Maximum Overall | Approx. | ||||||
| (V) | after 15 Cycles | Type | DimensionsD | Weight | |||||||
| Ampere Hour | Minutes of | mm (in.) | Kg(lbs) | ||||||||
| Capacity | DischargeC | ||||||||||
| (Ah) | (Min) | ||||||||||
| 20HRA | 5HRB | @25A | @75A | L | W | H | TH | ||||
| DT606 | 6 | 210 | 175 | 380 | 105 | WNT,LPT | 260 (10 1/4) | 180 (7 1/8) | 248 (9 3/4) | 279.5 (11 ) | 27.4(60.4) |
| DT106 | 6 | 225 | 185 | 445 | 115 | WNT,LPT | 260 (10 1/4) | 180 (7 1/8) | 248 (9 3/4) | 279.5 (11 ) | 28.5 (62.8) |
| DT126 | 6 | 240 | 195 | 485 | 130 | WNT,LPT | 260 (10 1/4) | 180 (7 1/8) | 248 (9 3/4) | 279.5 (11 ) | 30.1(66.4) |
| DT146 | 6 | 260 | 215 | 530 | 145 | WNT,LPT | 260 (10 1/4) | 180 (7 1/8) | 248 (9 3/4) | 279.5 (11 ) | 30.6 (67.5) |
| DT866 | 8 | 150 | 125 | 225 | E | WNT,LPT | 260 (10 1/4) | 180 (7 1/8) | 248 (9 3/4) | 279.5 (11 ) | 25.0 (55.1) |
| DT876 | 8 | 170 | 145 | 295 | F | WNT,LPT | 260 (10 1/4) | 180 (7 1/8) | 248 (9 3/4) | 279.5 (11 ) | 27.6 (60.9) |
| DT896 | 8 | 190 | 155 | 340 | G | WNT,LPT | 260 (10 1/4) | 180 (7 1/8) | 248 (9 3/4) | 279.5 (11 ) | 30.0 (66.2) |
| DT8240 | 8 | 240 | 190 | 415 | 110 | WNT,LPT | 260 (10 1/4) | 180 (7 1/8) | 285(10 1/8) | 317 (12 1/2) | 35.9 (7*.2) |
| DT1275 | 12 | 150 | 120 | 280 | H | WNT,LPT | 328 (12 7/8) | 180 (7 1/8) | 248 (9 3/4) | 279.5 (11 ) | 35.0 (77.2) |
| A | 20 hour rate is a BCI sanctioned rating expressing ampere hours required to achieve an end voltage of 1.75V/cell | ||||||||||
| at 27℃(80oF) and represents the batteries maximum capacity. | |||||||||||
| B | 5 hour rate is based on IEC ( International Electrotechnical Commission) temperature standard of 30℃( 86oF). | ||||||||||
| C | Reserve Capacity or Capacity – the number of minutes a battery can be discharged;at 25 or 75 amps | ||||||||||
| ( 56 amps for 8 volt batteries ) at 27℃( 80oF)and maintain a voltage above 1.75V/cell . | |||||||||||
| D | All dimensions taken from bottom of battery to top of terminal heights may vary according to type of terminals specified. | ||||||||||
| E | Capacity @ 56 amps is 90 minutes. | ||||||||||
| F | Capacity @ 56 amps is 117 minutes. | ||||||||||
| G | Capacity @ 56 amps is 132 minutes. | ||||||||||
| H | Capacity @ 56 amps is 102 minutes. | ||||||||||
